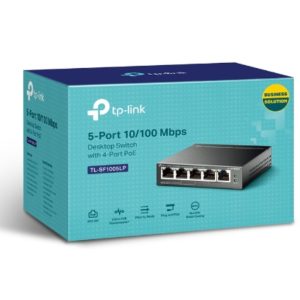

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE 41W IEEE 802.3af compliant 1Gbps Switching

Description

TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

• 5× 10/100 Mbps RJ45 ports
• 4× PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports*
• Plug and play with no configuration required

HARDWARE FEATURES
Interface • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45) • Standard: 802.3 af compliant
• PoE Ports: Ports 1–4
• Power Supply: 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption • 1.9 W (220 V / 50 Hz, no PD connected)
• 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation • 6.48 BTU/h(no PD connected)
• 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents • TL-SF1005LP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH
