Description

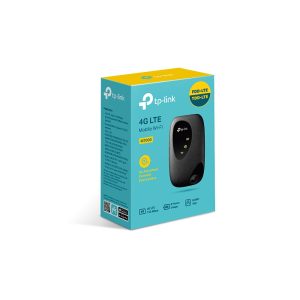

TP-Link M7000 4G LTE Mobile Wi-Fi
• Share with friends internet access for up to 10 devices simultaneously
• 2000 mAh battery for 8 hours of usage
• Supports the latest generation 4G FDD/TDD-LTE, compatible with the network of most countries and regions
• Easy management with the tpMiFi App
HARDWARE FEATURES
Interface 1 micro USB port for power supply
1 SIM card slot
Button Power Button, Reset Button
Power Supply Internal 2000 mAh Rechargeable Battery
External 5V/1A
Network Type 4G: FDD-LTE B1/B3/B5/B7/B8/B20
(2100/1800/850/2600/900/800 MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA+/HSPA/UMTS: B1/B5/B8(2100/850/900 MHz
Data Rates DL: 150 Mbps, UL: 50 Mbps
Dimensions ( W x D x H ) 3.7×2.2×0.8 in. (94×56.7×19.8 mm)
Antenna Internal Antennas
LED Display Wi-Fi status, Internet connection status, Battery status
WIRELESS FEATURES
Wireless Standards IEEE 802.11b/g/n
Wireless Speeds Up to 300 Mbps
Frequency 2.4 GHz
Reception Sensitivity 11b 11Mbps: -87.5dBm;
11g 54Mbps: -74dBm;
11n HT20 MCS7: -70dBm;
11n HT40 MCS7: -68dBm;
Transmit Power <20dBm
Wireless Security Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
DHCP Server, Client, DHCP Client List
OTHERS
Package Contents Mobile Wi-Fi M7000
Micro USB Cable
2000 mAh Battery
Quick Installation Guide
System Requirements Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
Certifications CE, RoHS
Environment Operating Temperature: 0℃~35℃ (32℉ ~95℉)
Storage Temperature: -20℃~60℃ (-4℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
