Hxsi Chn613

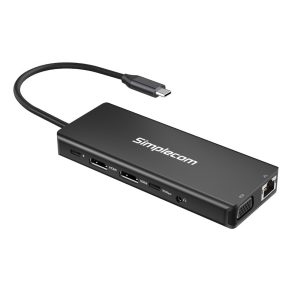

Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display USB 3.2 Gen 2 10Gbps

$69.58

Description

Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station Dual HDMI + VGA Triple Display USB 3.2 Gen 2 10Gbps

Features

13-in-1 USB-C multiport adapter for comprehensive expansion to your laptop
USB ports support up to 10Gbps transfer rate following USB 3.2 Gen 2 standard
Dual HDMI plus VGA, triple video outputs with MST Support
Support single HDMI up to 4K@30Hz and dual HDMI up to 1080p@60Hz
Support Mirror or Extended mode (maximum 2 extended mode displays)
Gigabit Ethernet support connection speeds of up to 1000Mbps
2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
USB-C PD port for charging the laptop with up to 100W of power
3.5mm audio jack for easy connection of headphones or speakers
Durable & stylish aluminium alloy housing
Lightweight, easy to carry along when travelling
Plug & play, no driver software required
Specifications

USB Hub: 4x USB-A Female (2x 5Gbps, 2x 10Gbps), 1x USB-C Female (10Gbps)
Video Output: 2x HDMI, VGA
HDMI Resolution: Single HDMI output supports up to 4K@30Hz, dual HDMI outputs support up to 1920×1080@60Hz on each external monitor
VGA Resolution: up to 1080p@60Hz
MST Support: Yes (for Windows System only)
RJ45 Port: Gigabit Ethernet (10/100/1000 Mbps)
Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
PD Charging: USB-C Female (for charging only), up to 100W
3.5′ Audio Jack: Yes (Audio output only)
Operation Temperature: 0 – 45°C
Housing: Aluminium Alloy
Dimensions: 13.5 x 5.5 x 1.6 (cm)
Cable Length: 15cm
Weight:

System Requirements

Available USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
Windows 8 or above for MST and two extended screens support
Thunderbolt USB-C port, USB3.2 Gen2 or USB4 port for 10Gbps data transfer rate
macOS does not support MST and will only support one extended mode
Important Note

Additional information

Weight 0.18 kg
Dimensions 19 × 10.2 × 2.4 cm
