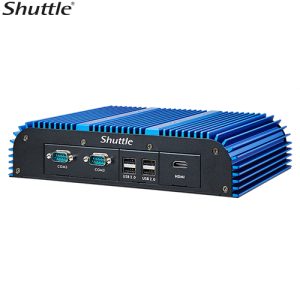

Shuttle BPCWL02 Embedded Box PC Barebone – Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter

$1,373.79

Description

Shuttle BPCWL02 Embedded Box PC Barebone – Whiskey Lake Intel i3-8145UE, Fan-Less Robust Aluminum Chassis, 2x LAN, 3x RS-232 (RS422/485), 90W adapter

Processor
8th Gen. Intel® Whiskey Lake-U Processors

Memory
2 x 260 pin SO-DIMM up to 64GB Dual Channel DDR4 2666MHz

BIOS
AMI UEFI 64 Mbit

Graphics – Display Interface
2 x HDMI 1.4b: 4096 x 2160@30Hz – Supports three displays

Internal Storage
1 x M.2 2280 M key (PCIe NVMe / SATA)

Audio Codec
Realtek ALC662 2-channel

Ethernet
2 x Intel® Gigabit LAN

WLAN
Intel WiFI Module (802.11 a/b/g/n/ac) & BT 5.0 (Option)
Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option)
External antenna (Dipole) x2 (Option)

LAN
2 x RJ-45 (10/100/1000Mbps)

Serial Ports
1 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) &12V (with specific optional board)

USB
4 x USB3.2 Gen 1 (Type A)
4 x USB2.0

Audio
1 x Line-out
1 x Mic-in

Power Type
– 19V (without wide range board)
– With wide range board, MB support 9-36V DC-in

Adapter
19V/4.74A 90W external adapter

OS Support
Windows 10/11 Embedded 64bit
Linux 64bit

Mounting VESA Mount 75 x 75 mm
Ear Mount 256 x 100 mm
Din Rail

Dimension (WxHxD)
245 x 57 x 169mm
Weight 2.85 kg

Additional information

Weight 2.5 kg
Dimensions 19 × 16.5 × 4.3 cm
