Mbm Prob760m Awifid4

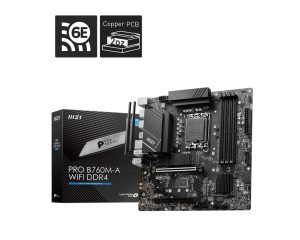

MSI PRO B760M-A WIFI DDR4 mATX Motherboard, 4x DDR4~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0

$202.40

Description

MSI PRO B760M-A WIFI DDR4 mATX Motherboard, 4x DDR4~128GB, 2x PCI-E x 16, 1x PCI-E x 1, 2x M.2, 4x SATA, 4x USB 3.2 , 2x USB 2.0

FEATURES:
Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

SPECIFICATIONS:
CHIPSET INTEL B760

CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY 4x DDR4, Maximum Memory Capacity 128G

ONBOARD GRAPHICS 2x HDMI™
2x DisplayPort
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE 2x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G port

USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)

INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen1 Type C

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION mATX 243.84mmx243.84mm

Additional information

Weight 1.28 kg
Dimensions 30 × 27.4 × 5.6 cm
