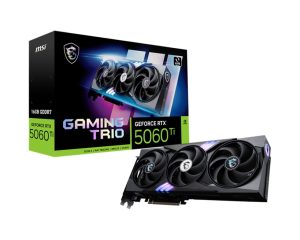

MSI nVidia GeForce RTX 5060 Ti 16G GAMING TRIO, PCI Express Gen 5×16, 28Gbps, Boost: 2572 MHz, CUDA 4608 Units, 16GB GDDR7, HDMI™ x 1

Description

MSI nVidia GeForce RTX™ 5060 Ti 16G GAMING TRIO, PCI Express® Gen 5×16, 28Gbps, Boost: 2572 MHz, CUDA 4608 Units, 16GB GDDR7, HDMI™ x 1

SPECIFICATIONS

Marketing Name GeForce RTX™ 5060 Ti 16G GAMING TRIO
Model Name G506T-16GTC
Graphics Processing Unit NVIDIA® GeForce RTX™ 5060 Ti
Interface PCI Express® Gen 5 x16 (uses x8)
Core Clocks Extreme Performance: 2662 MHz (MSI Center)
Boost: 2572 MHz
CUDA® CORES 4608 Units
Memory Speed 28 Gbps
Memory 16GB GDDR7
Memory Bus 128-bit
Output DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up
to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support Y
Power consumption 180 W
Power connectors 16-pin x 1
Recommended PSU 600 W
Card Dimension (mm) 300 x 125 x 44 mm
Weight (Card / Package) 844 g / 1384 g
DirectX Version Support 12 Ultimate
OpenGL Version Support 4.6
Maximum Displays 4
G-SYNC® technology Y
Digital Maximum Resolution 7680 x 4320

FEATURES

TRI FROZR 4
Upgraded fans, airflow control, and thermal design deliver
superior cooling and quieter operation.

STORMFORCE FAN
Seven fan blades, claw texturing, and a circular arc are designed
for optimal airflow with minimal noise.

Nickel-plated Copper Baseplate
Heat from the GPU and memory is swiftly captured by a nickelplated copper baseplate and transferred.

Core Pipes
Core Pipes feature a square design to maximize contact with them GPU baseplate for optimal thermal management.

Metal Backplate
A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.

Wave Curved 4.0
Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.

Air Antegrade Fin 2.0
The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
