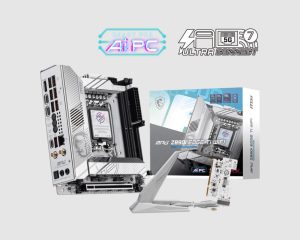

MSI MPG Z890I EDGE TI WIFI m-ITX MB, INTEL Z890, 2x DDR5 128GB, 1x HDMI, 1x PCI-E x16 slot, 4x M.2, 2x SATA, 2x USB 2.0, 2x USB C,

Description

MSI MPG Z890I EDGE TI WIFI, INTEL Z890, 2x DDR5 128GB, 1x HDMI, 1x PCI-E x16 slot, 4x M.2, 2x SATA, 2x USB 2.0, 2x USB C, Intel® Killer™ BE1750x Wi-Fi

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851

Memory
2x DDR5, Maximum Memory Capacity 128GB
Memory Support 8600 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

Onboard Graphics
1x HDMI™
Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Slot
1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4

Storage
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
2x SATA 6G

USB
2x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
7x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN 1x Intel® Killer™ E5000B 5G LAN

WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7

OPERATING SYSTEM Support for Windows® 11 64-bit

PCB Info Mini-ITX
170mmx170mm
