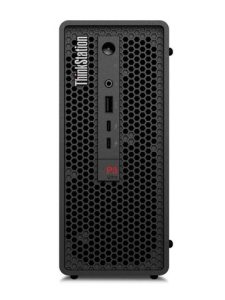

LENOVO ThinkStation P3 Ultra Intel i7-14700 32GB DDR5 1TB SSD WIN 11 PRO RTX 2000 + UHD 770 GPU 3yr Premier 300W PSU AI Workstation Desktop

Description

LENOVO ThinkStation P3 Ultra Intel i7-14700 32GB DDR5 1TB SSD WIN 11 PRO RTX 2000 + UHD 770 GPU 3yr Premier 300W PSU AI Workstation Desktop

PERFORMANCE
Processor Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, P-core 2.1 / 5.3GHz, E-core 1.5 / 4.2GHz, 33MB
AI PC Category AI-Ready Workstations
Processor Sockets 1x FCLGA1700
Integrated Graphics Integrated Intel® UHD Graphics 770
Discrete Graphics 1x NVIDIA® RTX 2000 Ada Generation 16GB
Chipset Intel® W680 Chipset
Memory 2x 16GB SO-DIMM DDR5-4800 ECC
Memory Slots Four DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 192GB (4x 48GB DDR5 SO-DIMM)
PCIe NVMe Controller Integrated NVMe® controller
PCIe NVMe Drive 1x 1TB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal
SATA Controller Integrated SATA controller
SATA/SAS Drive None
Audio Chip High Definition (HD) Audio, Realtek® ALC897-Q codec
Power Supply 300W 90% Adapter
DESIGN
Keyboard USB Calliope Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Expansion Slots Two PCIe® slots with one PCIe 4.0 x16 and one PCIe 3.0 x8. • Slot 1: PCIe 4.0 x16 (via MXM to PCIe riser card), low profile, 75W, double-width • Slot 2: PCIe 3.0 x8 (x4 lanes), low profile, 25W
Dust Filter None
Dimensions (WxDxH) 87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches)
Weight 3.6 kg (7.94 lbs, maximum configuration)
CONNECTIVITY
Onboard Ethernet Intel® I225-LM + I210-AT, 2x RJ-45, 2.5GbE + GbE
Optional Ethernet None
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.1, vPro®
Front Ports 2x Thunderbolt™ 4
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)
Rear Ports 4x USB-A (USB 10Gbps / USB 3.2 Gen 2)
3x DisplayPort™ 1.2
1x Ethernet (2.5GbE RJ-45)
1x Ethernet (GbE RJ-45)
Optional Rear Ports (configured) 4x miniDP 1.4a on NVIDIA® RTX 2000 Ada Generation
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch Chassis Intrusion Switch
MANAGEABILITY
System Management Intel® vPro® Enterprise with Intel AMT 16
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite
CERTIFICATIONS
ISV Certifications Please visit ISV certifications for Lenovo® Workstations
Mil-Spec Test MIL-STD-810H military test passed
SOFTWARE
Operating System Windows® 11 Pro, English
