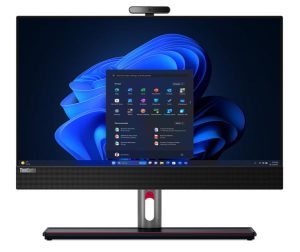

LENOVO ThinkCentre M90A G5 AIO 27′ QHD Intel i5-13500 16GB DDR5 512GB SSD Windows 11 Pro 3yrs OS Wty Webcam Speakers Keyboard Mouse

Description

LENOVO ThinkCentre M90A G5 AIO 27′ QHD Intel i5-13500 VPRO 16GB DDR5 512GB SSD Windows 11 Pro 3yrs OS Wty Webcam Speakers Keyboard Mouse

PERFORMANCE
Processor Intel® Core i5-13500, 10C (6P + 4E) / 16T, P-core 2.5 / 4.7GHz, E-core 1.8 / 3.5GHz, 20MB
Graphics Integrated Intel® UHD Graphics 730
Chipset Intel® Q670 Chipset
Memory 1x 16GB SODIMM DDR5-4800
Memory Slots Two DDR5 SODIMM slots, dual-channel capable
Max Memory Models with Core i3/i5: Up to 64GB DDR5-4800
Storage 512GB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal 2.0
Max Storage Support Models with Intel® UHD graphics: Up to two drives, 2x M.2 SSD • M.2 SSD up to 2TB each
Card Reader 3-in-1 Card Reader
Optical DVD±RW
Audio Chip High Definition (HD) Audio, Realtek® ALC233NL-VB2-CG codec
Speakers 3Wx2
Camera 5.0MP + IR Hybrid
Microphone 2x, Array
Power Supply 180W 90%
DESIGN
Display 27′ QHD IPS Anti-glare 250nits, 60Hz, 72% NTSC, software low blue light, flicker free
Touchscreen 10-point Multi-touch
Keyboard USB Calliope Keyboard, Black, Russian
Mouse USB Calliope Mouse, Black
Optional Bay None
Expansion Slots Models with Intel® UHD graphics: Three M.2 slots (one for WLAN, two for SSD)
Case Color Black
Stand UltraFlex V Stand
Mounting VESA mount
Pen Pen Not Supported
Form Factor AIO (23.8 inches)
Dimensions (WxDxH) Lowest in flat mode: 539.6 x 344.19 x 227.54 mm (21.24 x 13.55 x 8.96 inches) Highest in vertical mode: 539.6 x 252.60 x 472.00 mm (21.24 x 9.94 x 18.58 inches)
Weight Around 7.83 kg (17.3 lbs)
CONNECTIVITY
WLAN + Bluetooth Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.3, vPro®
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Rear Ports 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with data transfer and 15W charging
3x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
1x DisplayPort™ 1.4
1x Ethernet (RJ-45)
Warranty 3-year warranty

SBB Qty SBB Name Basic Name
SBB0F52821 1 MEXICO NOM MARK CARTON LABEL L1 LBL
SBB0F52822 1 European CE Mark For Carton Label L1 LBL
SBB0F52826 1 China CCC mark carton label L1 COPT
SBB0G92328 1 Energy Star label L1 LBL
SBB0G92483 1 Line Cord C13 M Model ANZ L1 CPK
SBB0L54558 1 USB TRDTNL KB BK ENG L1 KYB
SBB0Q94443 1 Modern Preload Cloud Tag L1 SWR
SBB0X41452 1 Dolby DAX3 Label L1 LBL
SBB0X41452 1 W11 P64-ENG L1 OSL
SBB1A22537 1 Enable temp key L1 OPT
SBB1A24538 1 BIOS TCO LOGO L1 LBL
SBB1B53379 1 CO2 Neutral Label L1 LBL
SBB1B54066 1 TUV Flicker Free cert mark L1 COPT
SBB1B57196 1 230W PSU MI Label L1 LBL
SBB1C50525 1 W11 Pro DPK WW L1 DPK
SBB1C52226 1 Intel Unison APP L1 SWR
SBB1C73710 1 Win11 Pro MFG Flag L1 LBL
SBB1F74940 1 Win11 Pro/Core GML C/L L1 LBL
SBB1H06693 1 No ODD Bezel L1 COPT
SBB1H07210 1 27 Q670 230W 92% UMA WW L1 BASE
SBB1H07219 2 8GB DDR5 5600 SoDIMM L1 SM
SBB1H07226 1 512GB SSD M.2 2280 G4p TLC OP L1 HD
SBB1H07235 1 USB Calliope Mouse BK L1 MOUSE
SBB1H07238 1 AX211 2x2ax 6E+BT vPro WW L1 WLAN
SBB1H07245 1 M.2 2280 G4 SSD Thermal Pad L1 HD
SBB1H07251 1 TCO mark carton label L1 LBL
SBB1H07263 1 PKG AIO W/FF Moni Stand WW L1 PKG
SBB1H07279 1 WIFI Antenna And Screw L1 WLAN
SBB1H07282 1 M.2 Cards Screw L1 HD
SBB1H07287 1 5MP RGBIR Camera w/Dual Mic L1 CAMIC
SBB1H07284 1 Full Function LTPS Stand L1 STAND
SBB1K21287 1 PUB TC/SC/ENG L1 LPK
SBB1K27856 1 Core i5-13500 2.5G 14C 20T vP L1 SP
SBB1K28892 1 Baseboard Driver Win11 L1 SWR
SBB1K29224 1 5B21D17043 MB FRU WIN DPK L1 DPK
SBB1K30181 1 Eyes Safe Mark L1 LBL
SBB1K30630 1 Core i5 vPro 13th Gen S1 LBL L1 LBL
SBB1K35988 1 SG ENG/SC/TC/JPN/KOR L1 LPK
