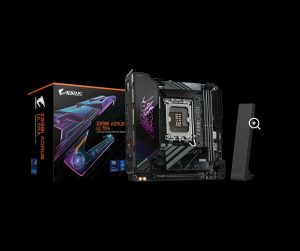

Gigabyte Z890I AORUS ULTRA Intel LGA 1851 m-ITX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 2x SATA, 5x USB 3.2, 1x USB-C

Description

Gigabyte Z890I AORUS ULTRA Intel LGA 1851 m-ITX Motherboard, 2x DDR5 ~128GB, 1x PCI-E x16, 2x M.2, 2x SATA, 5x USB 3.2, 1x USB-C

CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
Chipset Intel® Z790 Express Chipset

Memory
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort port, supporting a maximum resolution of 5120×2160@60 Hz
* Support for DisplayPort 1.4 version and HDCP 2.3
* The DisplayPort does not support HDMI connection by adapter

Storage Interface
CPU:1 x M.2 connector on the back of the GC-Z790I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector on the front of GC-Z790I BTB PLUG (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2 x SATA 6Gb/s connectors

USB
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0///1.1 ports on the back panel
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the USB headers
