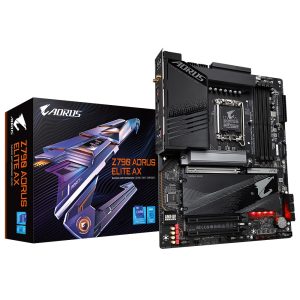

Gigabyte Z790 AORUS ELITE AX 1.0 Intel LGA 1700 ATX Motherboard, 4x DDR5 ~128GB, 3x PCI-E x16, 4x M.2, 6x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0

$468.05

Description

Gigabyte Z790 AORUS ELITE AX 1.0 Intel LGA 1700 ATX Motherboard, 4x DDR5 ~128GB, 3x PCI-E x16, 4x M.2, 6x SATA, 5x USB 3.2, 1x USB-C, 4x USB 2.0

CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU

Chipset
Intel® Z790 Express Chipset

Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
* Support for DisplayPort 1.2 version and HDCP 2.3

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

USB
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Form Factor
ATX Form Factor; 30.5cm x 24.4cm

Additional information

Weight 2.06 kg
Dimensions 34 × 27.2 × 8.2 cm
