Psg Ud1300gmpg5

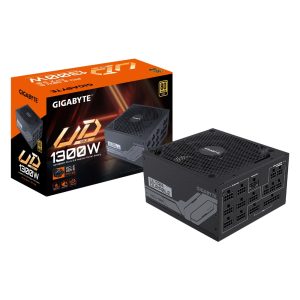

Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs

$487.03

Description

Gigabyte UD1300GM PG5 1300W ATX PSU Power Supply 80+ Gold >90% 140mm Fan Black Flat Cables Single +12V >100K Hrs

KEY FEATURE
Ultra Durable
Main Japanese capacitors
Enhanced thermal solution
140mm smart hydraulic bearing (HYB) fan
OVP/OPP/SCP/UVP/OCP/OTP protection
Support PCIe Gen 5.0 graphics card
Support Intel ATX 3.0 standard
80 PLUS Gold certified
Fully modular design
Compact size
10 years warranty (Adjusted according to different regions)
Input Current 15-6.5A

SPECIFICATIONS:

Model GP-UD1300GM PG5

Type Intel Form Factor ATX 12V v3.0

PFC Active PFC (>0.9 typical)

Input Voltage 100-240 Vac (full range)

Input Current 15-6.5A

Input Frequency 60-50 Hz

Output Capacity 1300W

Dimension 150 x 160 x 86 mm

Fan Type 140mm double ball bearing fan

80 PLUS Gold

Efficiency 90% at typical load

MTBF >100,000 hours

Protection OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal 100-150ms

Hold Up Time >16ms

Cable Type Flat, All black

Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 650mm*2
PCIe 16 Pin x 1: 700mm*1
PCIe 6+2 Pin x 8 : 650mm+150mm*3, 650mm*2
SATA x 12 : 650mm+150mm+150mm+150mm*3
4 Pin Peripheral x 6+4-Pin floppy x 2 : 600mm+150mm+150mm+150mm*2

Additional information

Weight 4.18 kg
Dimensions 34.6 × 22.4 × 14.6 cm
