ASUS nVidia GeForce PRIME RTX™ 5060 Ti 8GB GDDR7, 4608CUDA, 2602MHz, 8GBGDDR7, 28Gbps, 128bit, PCIe5.0, 7680×4320, HDMI2.1b, DP2.1b

Description

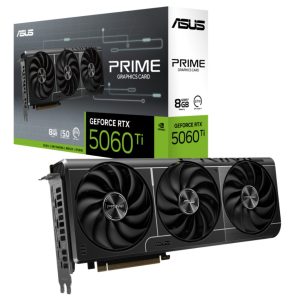

ASUS nVidia GeForce PRIME RTX™ 5060 Ti 8GB GDDR7

SPECIFICATION
Model
PRIME-RTX5060TI-8G

Graphic Engine
NVIDIA® GeForce RTX™ 5060 Ti

AI Performance
759 TOPs

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
8GB GDDR7

Engine Clock
OC mode: 2602MHz
Default mode: 2572MHz (Boost Clock)

CUDA Core
4608

Memory Speed
28 Gbps

Memory Interface
128-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Speedsetup Manual
1 x ASUS Velcro Hook & Loop
1 x Thank You Card

Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
304 x 120 x 50mm

Recommended PSU
550W

Power Connectors
1 x 8-pin

Slot
2.5 Slot

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage’ feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
