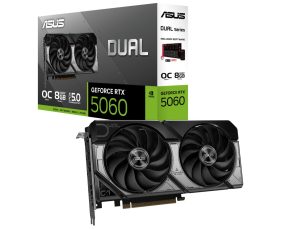

ASUS NVIDIA GeForce DUAL RTX™ 5060 8GB GDDR7 OC Edition, 3840 CUDA, 2565MHz, 128-bit, 7680×4320, PCIe 5.0

Description

ASUS NVIDIA GeForce DUAL RTX™ 5060 8GB GDDR7 OC Edition

SPECIFICATION
Model
DUAL-RTX5060-O8G

Graphic Engine
NVIDIA® GeForce RTX™ 5060

AI Performance
614 TOPs

Bus Standard
PCI Express 5.0

OpenGL
OpenGL®4.6

Video Memory
8GB GDDR7

Engine Clock
OC mode: 2565MHz
Default mode: 2535MHz (Boost Clock)

CUDA Core
3840

Memory Speed
28 Gbps

Memory Interface
128-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Speedsetup Manual
1 x Thank You Card

Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions
228 x 123 x 50 mm
8.98 x 4.84 x 1.97 inches

Recommended PSU
550W

Power Connectors
1 x 8-pin

Slot
2.5 Slot

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage’ feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
