Upapc Srv1krirk

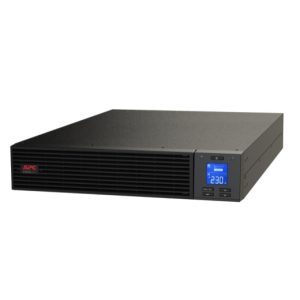

APC Easy UPS 1000VA/800W Online UPS, 2U Rackmount, 230V/10A Input, 3x IEC C13 Outlets, Lead Acid Battery, W/ Rail Kit



APC Easy UPS On-Line, 1000VA/800W, Rackmount 2U, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, W/ rail kit

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Run time for load 800 W 3min 49s
Min-max: 80-800 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Other Input Voltage 220 V, 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V, 240 V
Rated power in W 800 W
Rated power in VA 1000 VA
Input Connection Type IEC 60320 C14
Output connection type 3 IEC 60320 C13
Number of rack unit 2U
Cable length 1.50 m
Number of cables 1
Provided equipment, 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, 1 rack mounting brackets, 1 rack mounting support rails user manual
Input voltage limits 10…285 V half load, 160…280 V full load
Network frequency 40…70 Hz auto sensing
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 50 dBA
Heat dissipation 372 Btu/h
IP degree of protection

Mounting mode- Rack mounted
Replacement Battery- APCRBCV200
Compatible NMC- AP9544, SRVSMB001, VGL9901I

Additional information

Weight 13.1 kg
Dimensions 55 × 70 × 21.8 cm
