Alloy FCR200ST 10/100Base-TX to 100Base-FX Multimode Fibre (ST) Converter with LFP via FEF or FM. 2Km

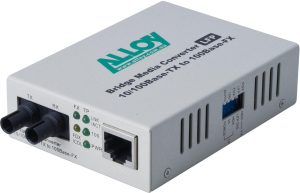

Alloy FCR200ST

100Mbps Standalone/Rackmount Media Converter

The FCR200ST, a FCR200 Series Fast Ethernet Media Converter, can be used ‘Standalone’ or installed in an Alloy DCR12 Series Media Converter Chassis, and has a 100Base-TX and a 100Base-FX multimode ST port. Fibre cable range is up to 2Km.

The FCR200ST is a dual purpose Fast Ethernet Media Converter. It can be used as a standalone discrete device, or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Chassis. Whichever mode the FCR200ST is used in, it is a flexible solution ideal for a wide variety of media conversion applications in Fast Ethernet network environments. With dual 100Base-TX auto-sensing 10/100Mbps RJ-45 and 100Base-FX ST terminated multimode ports, the FCR200ST is an ideal solution for UTP/STP copper to Fast Ethernet multimode fibre media conversion tasks. The RJ-45 port supports Fast Ethernet and Ethernet UTP/STP links at up to a 100 metres range, and the 100Base-FX port has a maximum fibre cable range of up to 2 kilometres.


FCR200ST model: Fast Ethernet copper to 100Base-FX multimode fibre media conversion – 2Km range
Dual Purpose FCR200 Series – use ‘standalone’ or install in a DCR12 Series Media Converter Chassis
FCR200 Series: Fast Ethernet copper to multimode, singlemode and WDM Media Conversion solutions
FCR200 Series: models with copper to 1300nm and 1550nm singlemode fibre support
LC, SC, ST, and MT-RJ fibre connectors supported on individual FCR200 Series models
Up to 100 kilometres fibre range supported with FCR200 Series Converters
Easy ‘Slide-in, Hot Swap’ installation into DCR12 Media Converter Chassis systems
Supports Forced and Far-end Fault mode Link Fault Passthrough (LFP)
All FCR200 models powered by external plugpack or via USB connection
Compact, rugged all-metal case

Additional information

Weight 1 kg
Dimensions 15 × 15 × 15 cm
